ACE Battery

100kwh Lightweight E20-H1 Solar Battery Storage System | ACE Battery

Discover a new age of energy management with ACE Battery's advanced Residential Solar Battery and Storage Systems. Harness solar energy more effectively and power your operations sustainably, both day and night!

Residential Energy Storage System | Home Energy Solution | ACE Battery

<div class='sa_b_component_richtext_unique'>
 <style>
 .sa_b_component_richtext_unique p {
 margin: 0;
 }
 .sa_b_component_richtext_unique img {
 max-width: 100%;
 margin-bottom: 20px;
 }
 .sa_b_component_richtext_unique table {
 max-width: 100%;
 min-height: 80px;
 margin-bottom: 20px;
 overflow: auto;
 }
 .sa_b_component_richtext_unique td {
 padding: 12px;
 }
 .sa_b_component_richtext_unique ul {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique ol {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique li::marker {
 font-size: 16px;
 }
 </style>
 &nbsp;
<table style="border-collapse: collapse; width: 100%; height: 210px;" border="0">
<tbody>
<tr style="height: 126px;">
<td style="width: 30.9384%; height: 126px;">
Scalable Configuration
Modular design: one storage cluster can support 2 to 5 battery modules. Energy storage clusters can be expanded in parallel to a max. engery of 113.6kWh.
</td>
<td style="width: 30.9384%; height: 126px;">
High Safety
System design based on LFP batteries, which has greater thermal stability.
</td>
<td style="width: 30.9399%; height: 126px;">
Quick Installation
Wireless Fast-Plug Stacking design to save installation time and cost.
</td>
</tr>
<tr style="height: 84px;">
<td style="width: 30.9384%; height: 84px;">
Long Service Life
Battery cycle life over 7000 at recommended condition.
</td>
<td style="width: 30.9384%; height: 84px;">
IP65 Rating
IP65 water- and dust-proof, supports both indoor and outdoor installation.
</td>
<td style="width: 30.9399%; height: 84px;">
High Usage
Battery usable energy up to 95%.
</td>
</tr>
</tbody>
</table>
&nbsp;
<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/dfd9826e694109606374904.jpg" alt="">
</div>

<div class='sa_b_component_richtext_unique'>
 <style>
 .sa_b_component_richtext_unique p {
 margin: 0;
 }
 .sa_b_component_richtext_unique img {
 max-width: 100%;
 margin-bottom: 20px;
 }
 .sa_b_component_richtext_unique table {
 max-width: 100%;
 min-height: 80px;
 margin-bottom: 20px;
 overflow: auto;
 }
 .sa_b_component_richtext_unique td {
 padding: 12px;
 }
 .sa_b_component_richtext_unique ul {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique ol {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique li::marker {
 font-size: 16px;
 }
 </style>
 App/Web-based Monitoring
Full visibility of battery status
Real-time monitoring
&nbsp;
<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/3cb999a0652547685908699.jpg" alt="" />
&nbsp;
Smart Energy Management
Accurate SOC &amp; SOH estimation
Efficient battery cell balancing
&nbsp;
<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/470ea978652547744628953.jpg" alt="" />
</div>

<div class='sa_b_component_richtext_unique'>
 <style>
 .sa_b_component_richtext_unique p {
 margin: 0;
 }
 .sa_b_component_richtext_unique img {
 max-width: 100%;
 margin-bottom: 20px;
 }
 .sa_b_component_richtext_unique table {
 max-width: 100%;
 min-height: 80px;
 margin-bottom: 20px;
 overflow: auto;
 }
 .sa_b_component_richtext_unique td {
 padding: 12px;
 }
 .sa_b_component_richtext_unique ul {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique ol {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique li::marker {
 font-size: 16px;
 }
 </style>

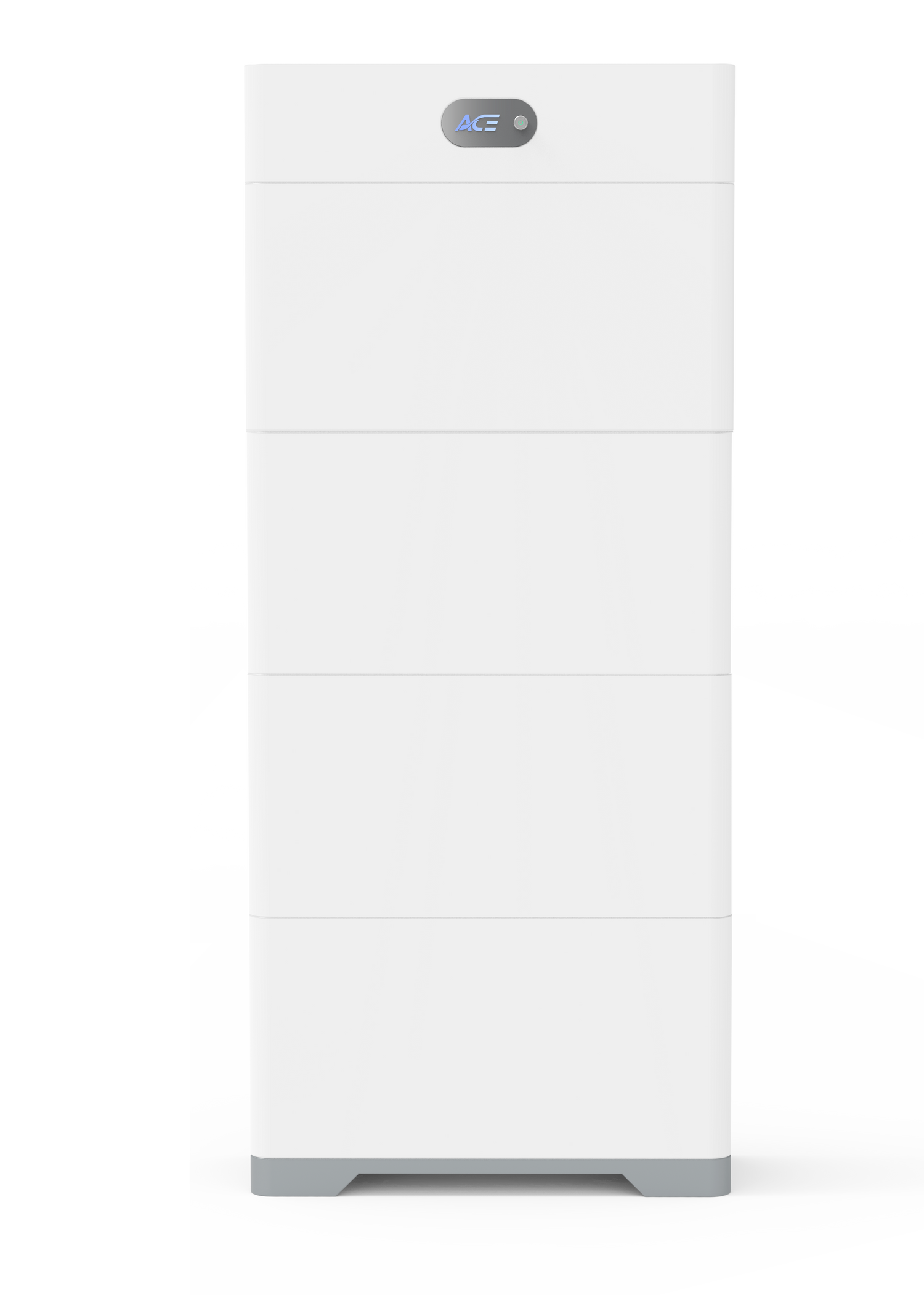

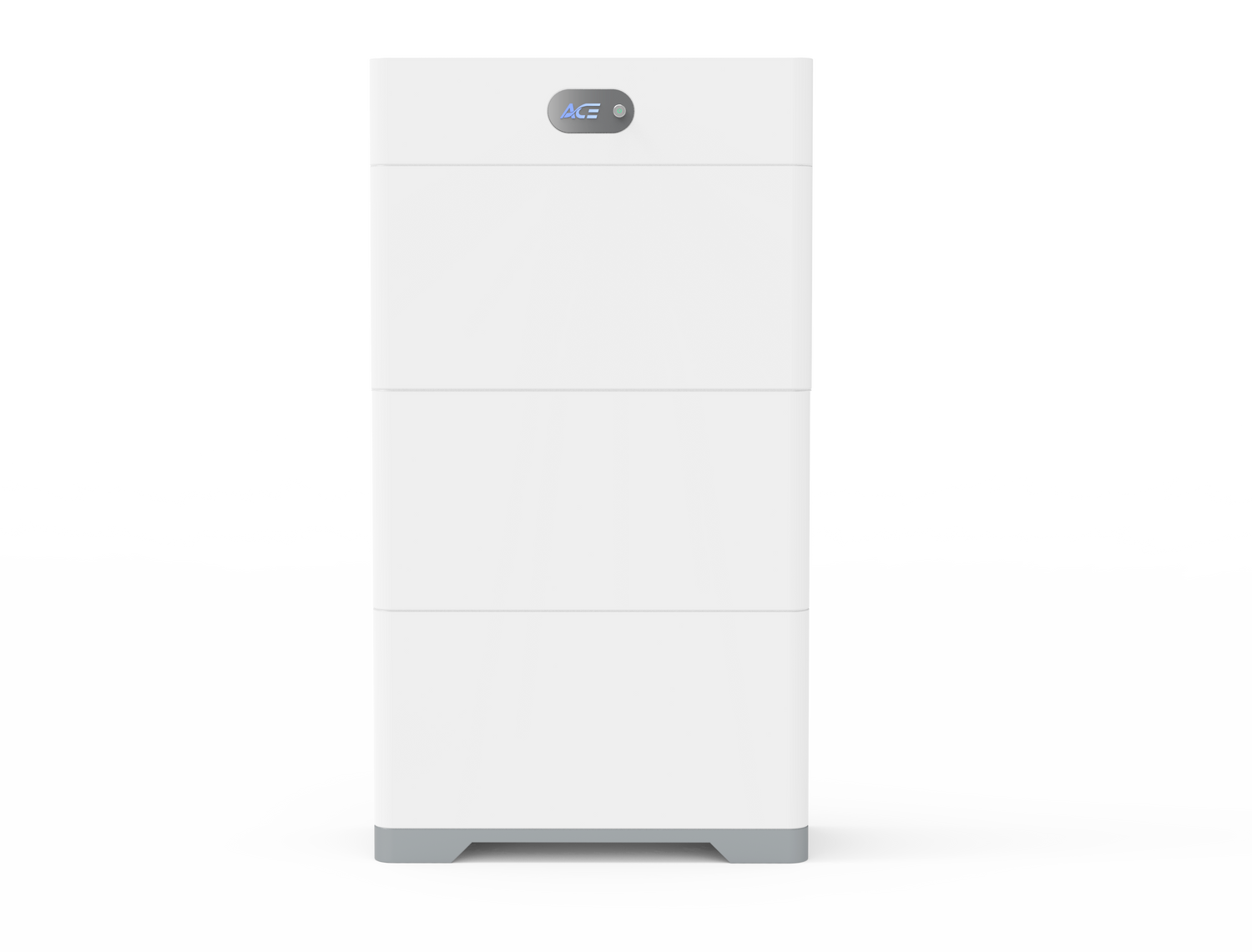

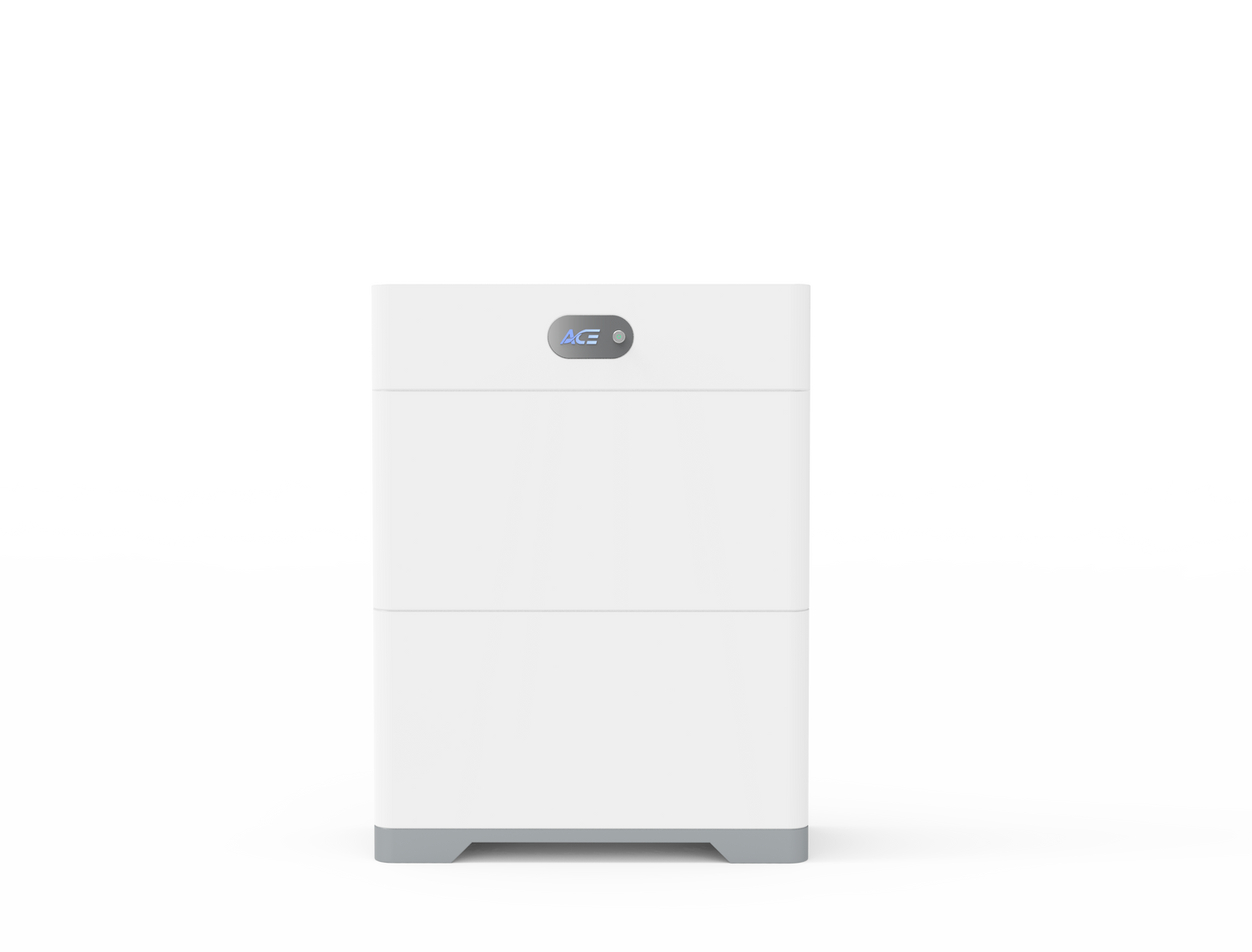

 Stackable Home Energy Storage System
&nbsp;
<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/fafe9f6c713438494361020.png" alt="">
&nbsp;

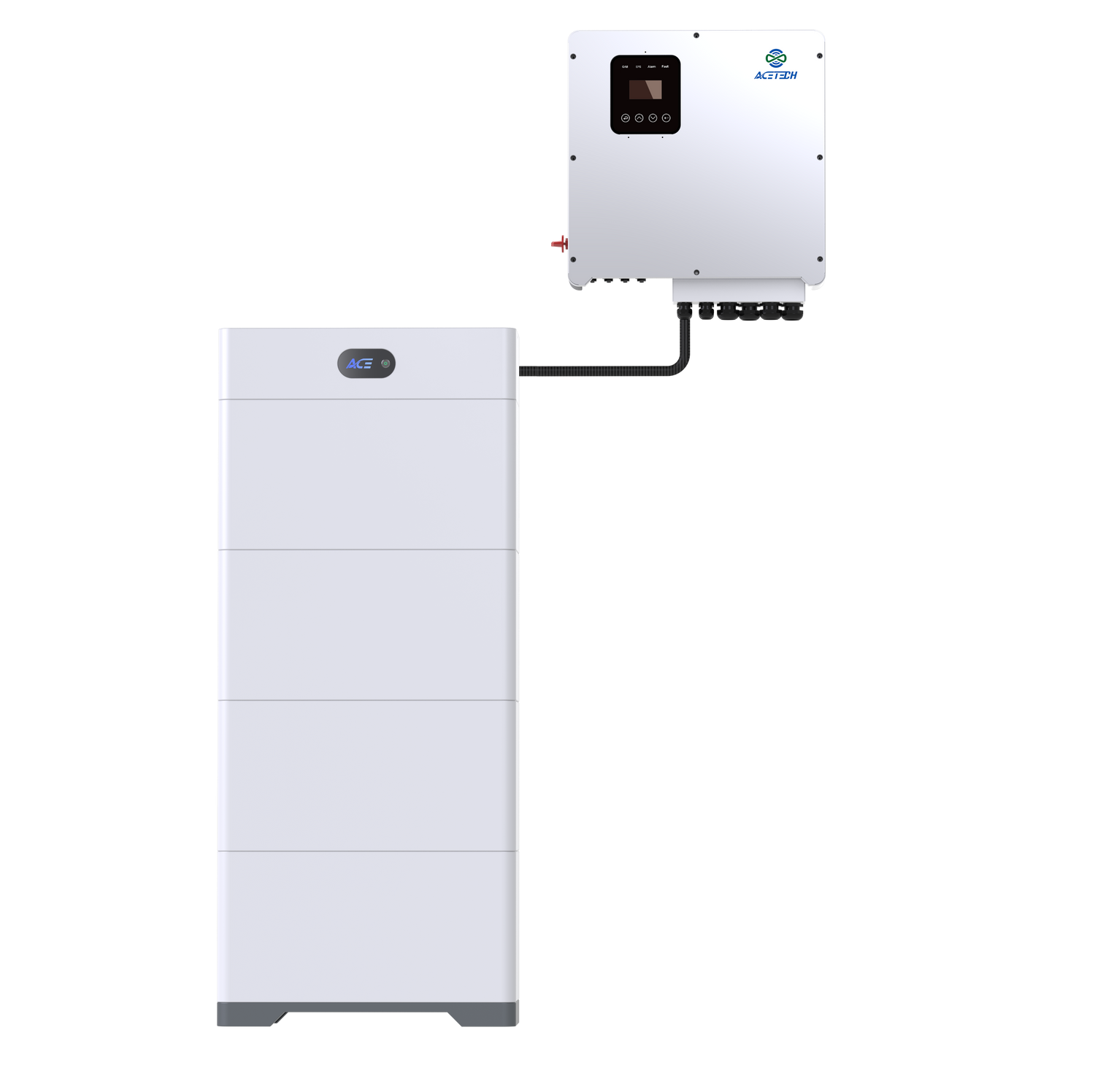

How Solar Batteries Work
Battery storage works by storing the excess solar energy from the PV system for nighttime usage. Another salient feature of storage systems is that it protects your house from power outages and helps reduce dependence on grid supply.
&nbsp;
<ul class=" list-paddingleft-2">
<li style="text-align: left; line-height: 1.5;">
Solar Panels convert sunlight to DC electricity
</li>
<li style="text-align: left; line-height: 1.5;">
The inverter converts this to AC, which gets used by home appliances during the daytime
</li>
<li style="text-align: left; line-height: 1.5;">
The surplus power generated by the panels, which otherwise gets fed to the grid, is used to charge the batteries
</li>
<li style="text-align: left; line-height: 1.5;">
Once the batteries are fully charged, the remaining solar energy is exported to the grid as usual
</li>
<li>
The stored energy in the battery gets utilised during the night time and thus ensuring minimal dependence on the grid
</li>
</ul>
&nbsp;
&nbsp;
<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/41e0336c659769245614796.jpg" alt="">
</div>

<div class='sa_b_component_richtext_unique'>
 <style>
 .sa_b_component_richtext_unique p {
 margin: 0;
 }
 .sa_b_component_richtext_unique img {
 max-width: 100%;
 margin-bottom: 20px;
 }
 .sa_b_component_richtext_unique table {
 max-width: 100%;
 min-height: 80px;
 margin-bottom: 20px;
 overflow: auto;
 }
 .sa_b_component_richtext_unique td {
 padding: 12px;
 }
 .sa_b_component_richtext_unique ul {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique ol {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique li::marker {
 font-size: 16px;
 }
 </style>
 &nbsp;
<table style="border-collapse: collapse; width: 100%; border-color: rgb(0, 0, 0); height: 761.5px; border-width: 1px;" border="1" width="834">
<tbody>
<tr style="background-color: rgb(0, 93, 188); height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;" width="342">Model number</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;" width="123">RESS-BS-7.6-H1</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;" width="123">RESS-BS-11.4-H1</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;" width="123">RESS-BS-15.2-H1</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;" width="123">RESS-BS-19-H1</td>
</tr>
<tr style="height: 21px; background-color: rgb(0, 93, 188);">
<td style="width: 38.316%; height: 25px; border-width: 1px;">System</td>
<td style="width: 61.684%; height: 25px; border-width: 1px;" colspan="4">&nbsp;</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Battery System Energy (kWh)&nbsp;</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">7.6</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">11.4</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">15.2</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">19</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Usable Energy (kWh)[1]</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">7.2</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">10.8</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">14.4</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">18.1</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Number of Battery Modules</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">2</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">3</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">4</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">5</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Rated Battery Voltage (V)</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">204.8</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">307.2</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">409.6</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">512</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Operating Battery Voltage Range (V)</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">179.2~224</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">268.8~336</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">358.4~448</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">448~560</td>
</tr>
<tr style="height: 42px;">
<td style="height: 42px; width: 38.316%; border-width: 1px;">Recommended Charging/Discharging Power (kW)</td>
<td style="height: 42px; width: 15.421%; border-width: 1px;">3.8</td>
<td style="height: 42px; width: 15.421%; border-width: 1px;">5.7</td>
<td style="height: 42px; width: 15.421%; border-width: 1px;">7.6</td>
<td style="height: 42px; width: 15.421%; border-width: 1px;">9.5</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Max. Output Power (kW)[2]</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">7.6</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">11.4</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">15.2</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">19.0</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Recommended Charging/Discharging Current(A)</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">18.5</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">18.5</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">18.5</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">18.5</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Max. Charging/Discharging Current(A)[2]</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">37</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">37</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">37</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">37</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">System Dimensions (W*H*D) (mm)</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">625*830*250</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">625*1145*250</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">625*1460*250</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">625*1775*250</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">System Net Weight (kg)[3]</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">105</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">149</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">193</td>
<td style="height: 21px; width: 15.421%; border-width: 1px;">237</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Communication</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">RJ45( RS485, CAN,Dry contact)</td>
</tr>
<tr style="height: 22.5px; background-color: rgb(0, 93, 188);">
<td style="height: 22.5px; width: 38.316%; border-width: 1px;">Module</td>
<td style="height: 22.5px; width: 61.684%; border-width: 1px;" colspan="4">&nbsp;</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Battery Module Model number</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">RESS-BM-10237-H1</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Battery Module Energy(kWh)&nbsp;</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">3.8</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Battery Module Usable Energy(kWh)&nbsp;</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">3.6</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Rated Battery Module Voltage(V)&nbsp;</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">102.4</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Battery Module Dimensions (W*H*D) (mm)</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">625*315*250</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Battery Module Net Weight (kg)</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">44</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Battery Control Box Model number</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">RESS-BC-51237-H1</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Max. Working Voltage(V)&nbsp;</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">512</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Control Box&nbsp; Dimensions (W*H*D) (mm)</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">625*150*250</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Control box Net Weight (kg)</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">12</td>
</tr>
<tr style="background-color: rgb(0, 93, 188);">
<td style="width: 38.316%; border-width: 1px;">Environment</td>
<td style="border-width: 1px;" colspan="4">&nbsp;</td>
</tr>
<tr style="height: 42px;">
<td style="height: 42px; width: 38.316%; border-width: 1px;">Operating Temperature&nbsp;</td>
<td style="height: 42px; width: 61.684%; border-width: 1px;" colspan="4" width="492">Charge :-10&deg;C~50&deg;C Discharge:-10&deg;C~55&deg;C[4]</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Operating Humidity&nbsp;</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">0~95%RH, non-condensing</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Operating Altitude</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">&lt;=3000m</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Installation</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">Wall-mounted or Floor-mounted</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Ingress Protection Rating</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">IP65</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Warranty</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">10years</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Cycle life</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">&gt;=7000 cycles[5]</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Scalability[6]</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">Max.30 Modules in paralell (113.6kWh)</td>
</tr>
<tr style="background-color: rgb(0, 93, 188);">
<td style="width: 38.316%; border-width: 1px;">Certification</td>
<td style="border-width: 1px;" colspan="4">&nbsp;</td>
</tr>
<tr style="height: 21px;">
<td style="height: 21px; width: 38.316%; border-width: 1px;">Certification</td>
<td style="height: 21px; width: 61.684%; border-width: 1px;" colspan="4">IEC62619/CE/UKCA/UN38.3</td>
</tr>
</tbody>
</table>
&nbsp;
[1]Test Conditions - Temperature 25&deg;C, at the beginning of life, cell charge voltage between 2.8~3.5V, 0.5C. [2]Depends on the max. battery charge/discharge power of the inverter and BMS communication between intverter and battery system. [3]+/-3%, For accurate proudct weight please refer to actrual product packaging label. [4]Charge derating occurs between-10&deg;C~10&deg;C. Discharge derating occurs between-10&deg;C~0&deg;C, 45&deg;C~55&deg;C. [5]25&deg;C ambient temperature, recommended charging/discharging current. [6]Need extra power distribution enclosure to do battery clusters parallel, each cluster has max. 3 Modules.
</div>

<div class='sa_b_component_richtext_unique'>
 <style>
 .sa_b_component_richtext_unique p {
 margin: 0;
 }
 .sa_b_component_richtext_unique img {
 max-width: 100%;
 margin-bottom: 20px;
 }
 .sa_b_component_richtext_unique table {
 max-width: 100%;
 min-height: 80px;
 margin-bottom: 20px;
 overflow: auto;
 }
 .sa_b_component_richtext_unique td {
 padding: 12px;
 }
 .sa_b_component_richtext_unique ul {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique ol {
 margin-left: 20px;
 }
 .sa_b_component_richtext_unique li::marker {
 font-size: 16px;
 }
 </style>
 &nbsp;
<img src="https://media.cdn.ishopastro.com/596071844082270/static-res/1e2b94b0714866017341594.png" alt="">
</div>

The E20 home backup battery (high voltage), which utilizes LiFePO4 batteries, has been developed to assist residential properties in the efficient storage and utilization of energy.

RESS-E20-H1
